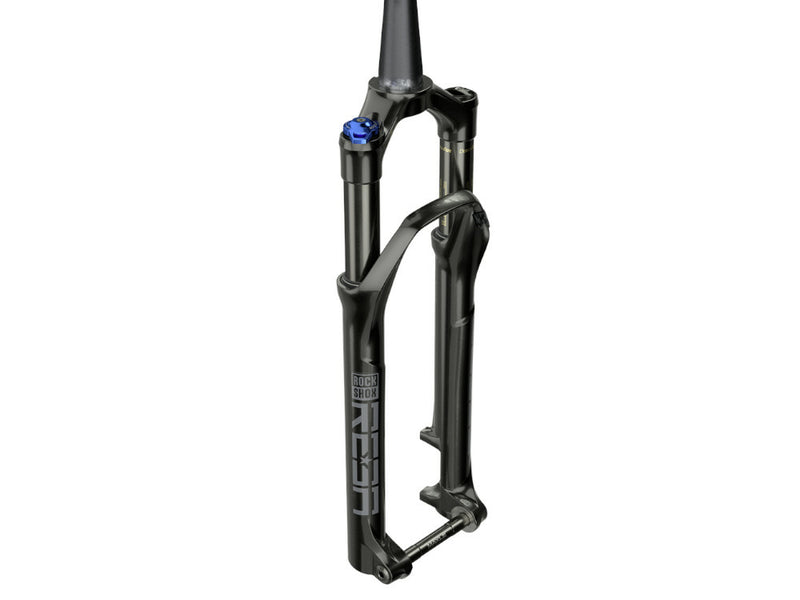

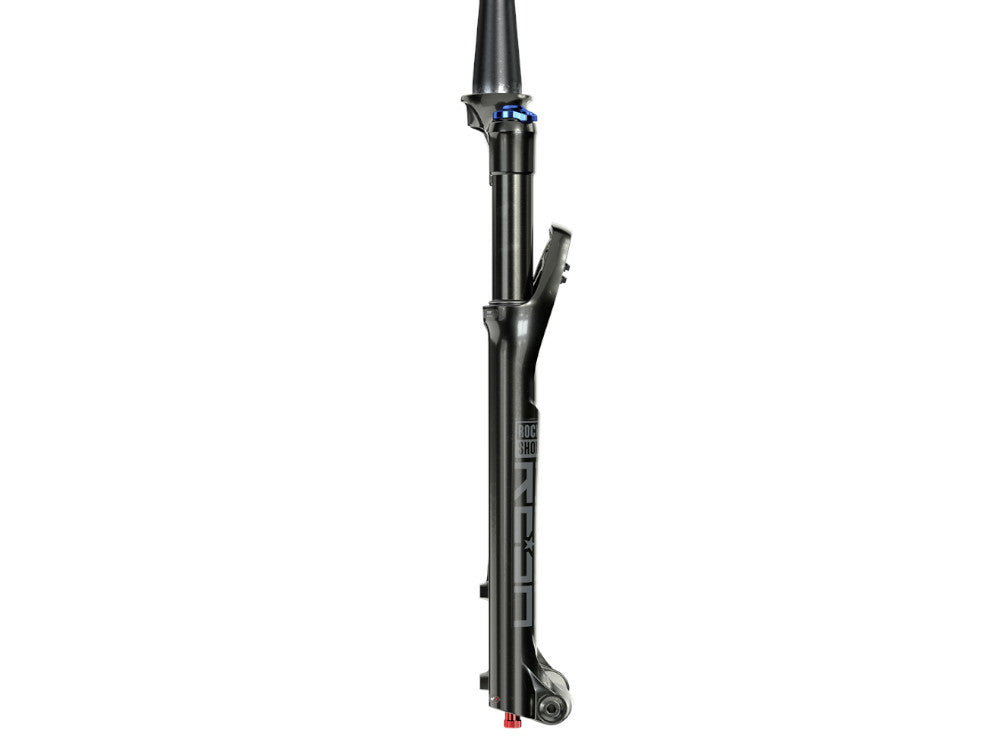

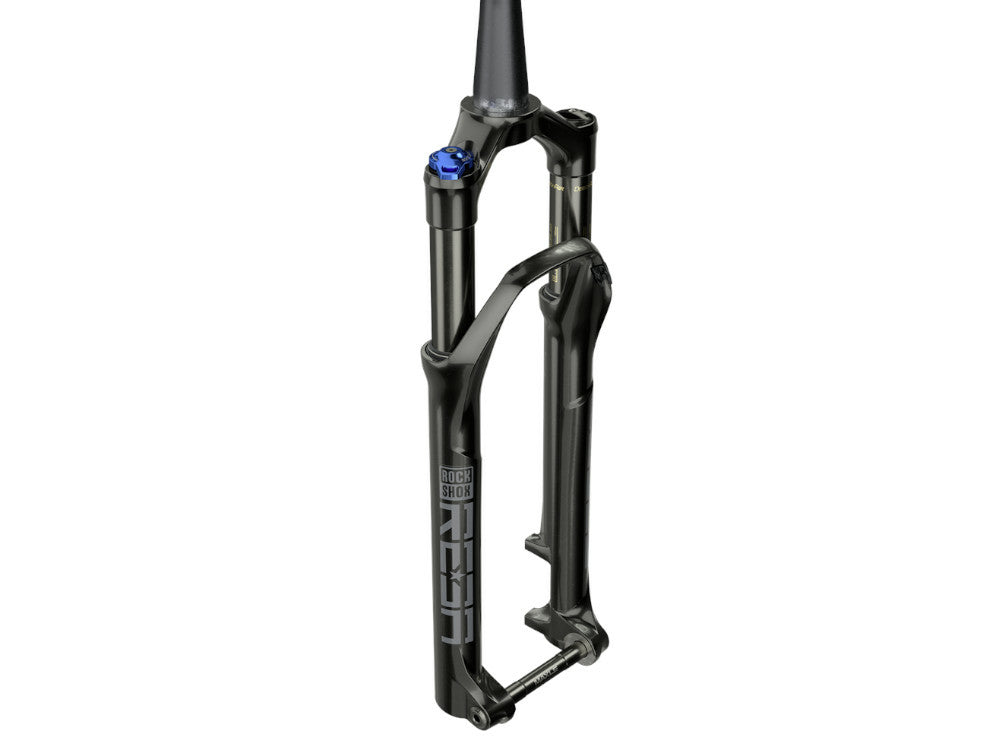

Rockshox Suspension Fork 29" REBA RL SA 120 mm BOOST 51 mm

The Motion Control damping on the Reba RL has a factory-set trigger threshold that only triggers with larger impacts. During the ride, this ensures that the fork does not bob too much when pedaling out of the saddle. For very hard starts and sprints, the fork also offers a lockout function, which, depending on the version, can be operated on the fork crown or via the OneLoc remote control or an optionally available TwistLoc twist grip.

Solo Air
The negative and positive air chambers are only filled at the same time by means of one valve. Which makes it much easier to adjust your personal set-up.

Motion control
Proven damping system, which has been an established part of Reba for years.

Bottomless tokens
Allows individual adjustment of the air chamber size. This enables you to adapt the spring characteristics of your fork perfectly to your riding style.

Maxle Stealth
Very light thru axle which can be mounted and removed with a 6 mm hexagon socket. In addition to a clean look, it also saves a little weight on the unsprung mass.

BOOST
An axle type with a width of 110 mm and a 15 mm thru axle. The hub body, which has been widened by 10 mm, allows flatter spoke angles and thus enables a more stable and stiffer wheel.

Torque Caps
To improve the rigidity and steering precision of the entire system, the dropouts have been enlarged for the use of end caps with a 31 mm diameter. Use with normal end caps is possible without any problems.

Technical specifications:

intended use : Cross Country, Trail
E-bike ready: yes
Wheel size: 29 "
Material fork crown / shaft: aluminum - hollow forged / aluminum
Material stanchions: aluminum, 32 mm straight wall, black anodized (Fast Black)
Material dip tubes: magnesium
axle type : 15 x 110 mm BOOST thru axle (Maxle Stealth incl.)
Steerer: tapered 1.5 "to 1 1/8" (28.6 mm to 40 mm), approx. 265 mm length (not shortened)
Suspension travel: 120 mm
Spring system: SoloAir, adjustment of the spring stiffness via two air chambers which are filled via a car valve
Adjustment of the spring characteristic: yes, via bottomless tokens (max. 3 permitted)
Damping: Motion Control, externally adjustable rebound, low-speed compression in 5 clicks to lockout
Lockout: fork crown
Installation height: 531 mm
Brake mount: Postmount (160 mm)
Max. permissible brake disc size: 220 mm
Tire diameter max .: 760 mm
Tire width max .: 81 mm
Offset: 51 mm
Color: black glossy (Gloss Black, Casting), black anodized standpipes (Fast Black)
