BIANCHI ARCADEX COMP CARBON APEX/ SX 12SPD GARVEL BIKE

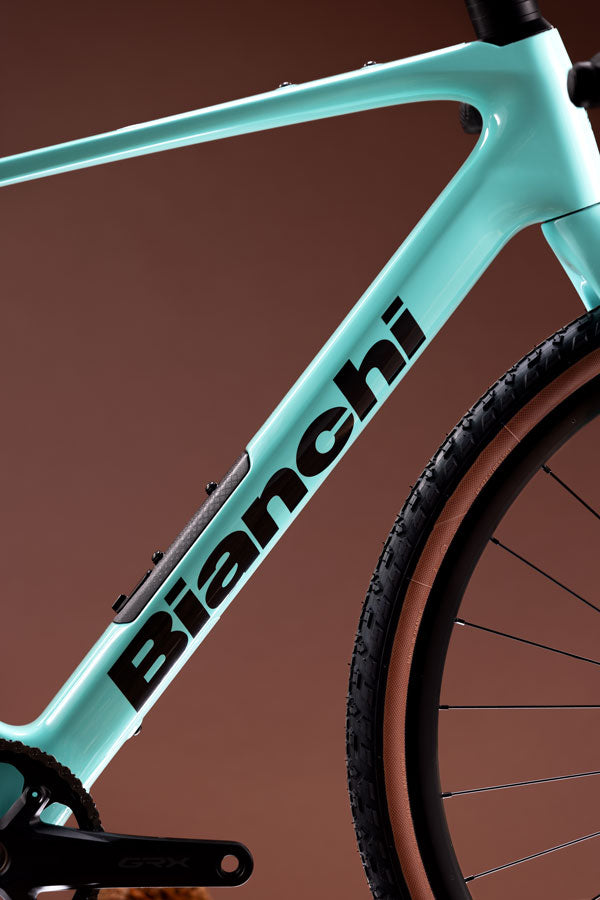

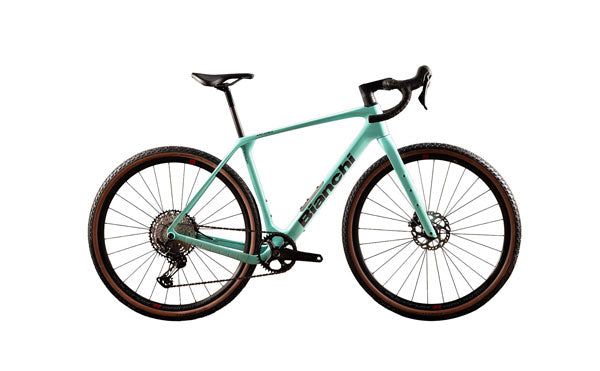

AY – Celeste and graphite

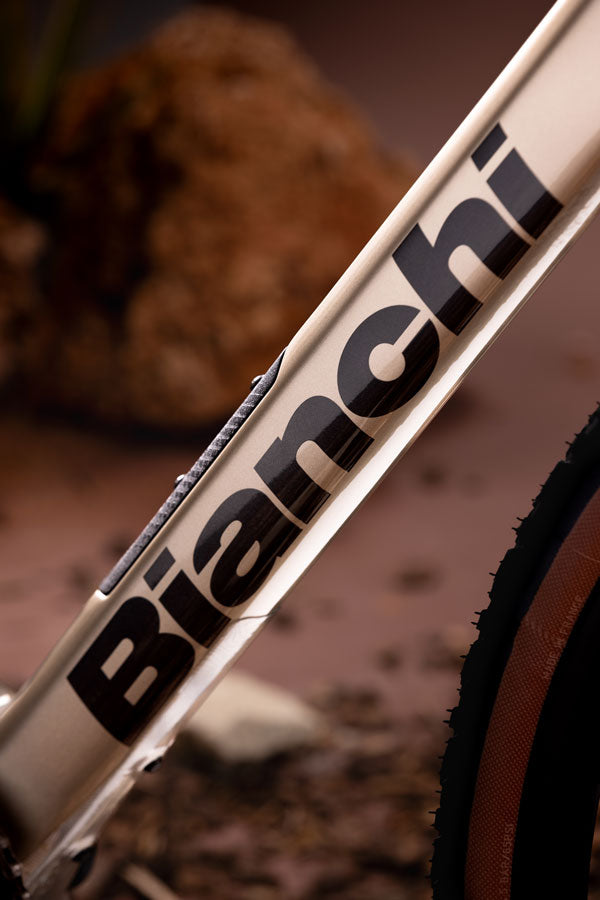

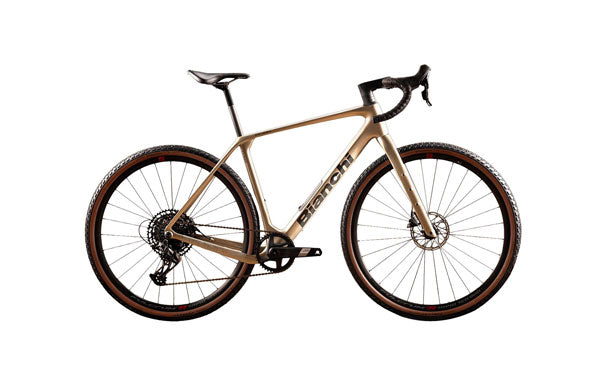

AZ – Metallic sand with graphite accents

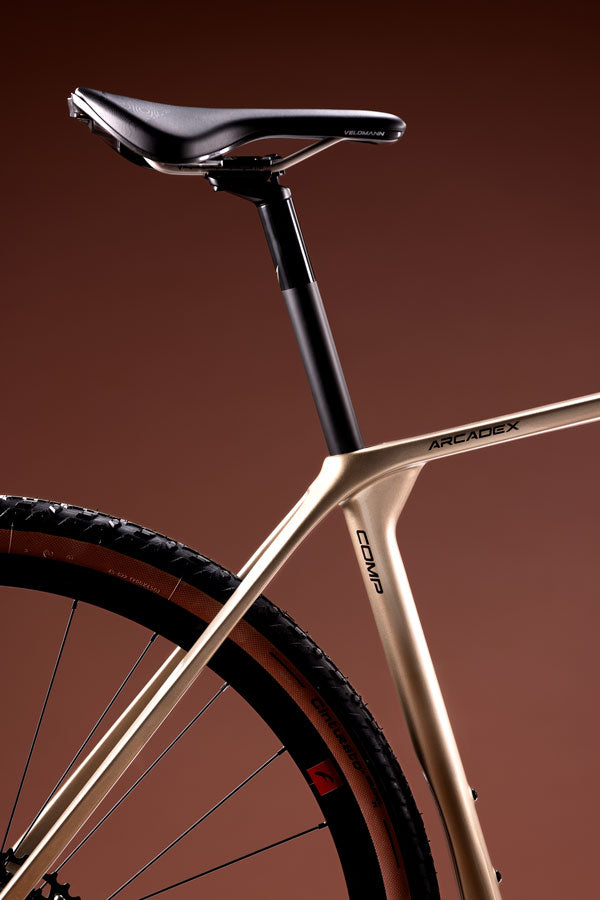

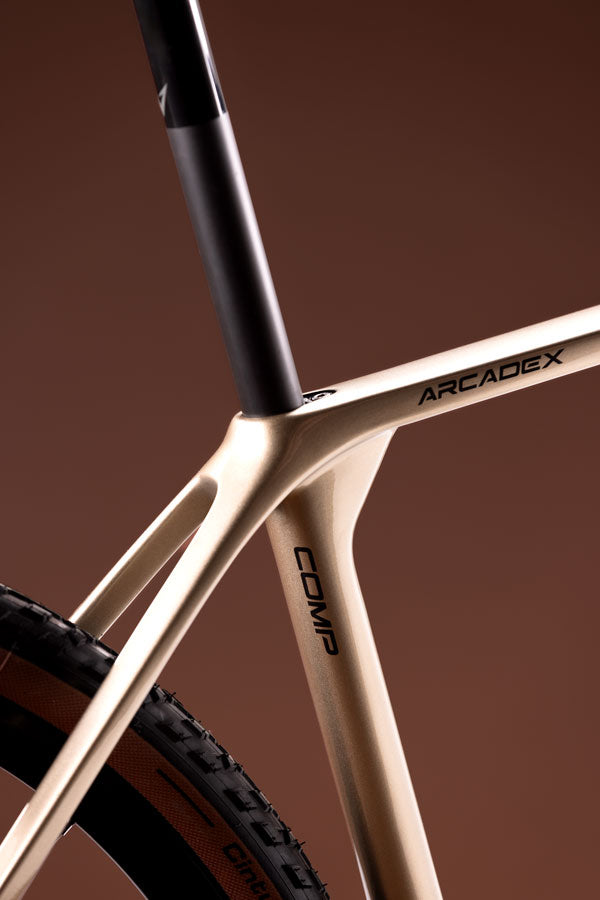

The carbon fiber frame with endurance geometry provides all the comfort needed to fully experience long-distance adventures without sacrificing performance.
Comp version features a semi-internal cable routing system.
The Arcadex has clearance for up to 700c x 50mm tyres

Frameset
Frame
Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:

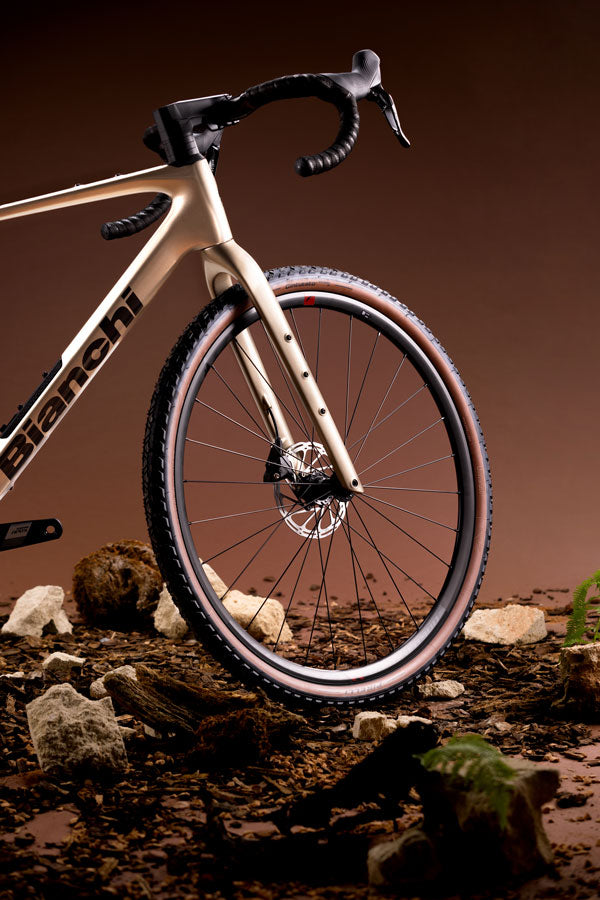

Fork
Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8″” Material: Epoxy – SM Carbon Fiber Composite
Headset
Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal
Drivetrain
Shifters
Sram Apex D1
Rear Derailleur
Sram Apex Eagle Maximum Cassette Sprocket 52T
Crankset
Sram Apex 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
Bottom Bracket
Sram DUB PressFit Road Wide 86.5 X Ø41
